TricValve® Transcatheter Bicaval Valves

INTENDED USE

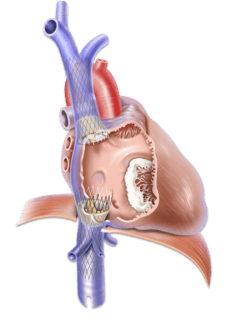

TricValve® Transcatheter Bicaval Valves is a system of two self-expanding biological valves for the treatment of patients with hemodynamically relevant tricuspid insufficiency and cavalreflux. The prostheses are implanted percutaneously into the inferior and superior vena cava without disturbing the native tricuspid valve. It is especially intended for use for patients at extreme risk or who are inoperable for open surgical therapy.

CE and ANVISA certification in process. The product is available for compassionate use in selected patients, please refer to the screening criteria:

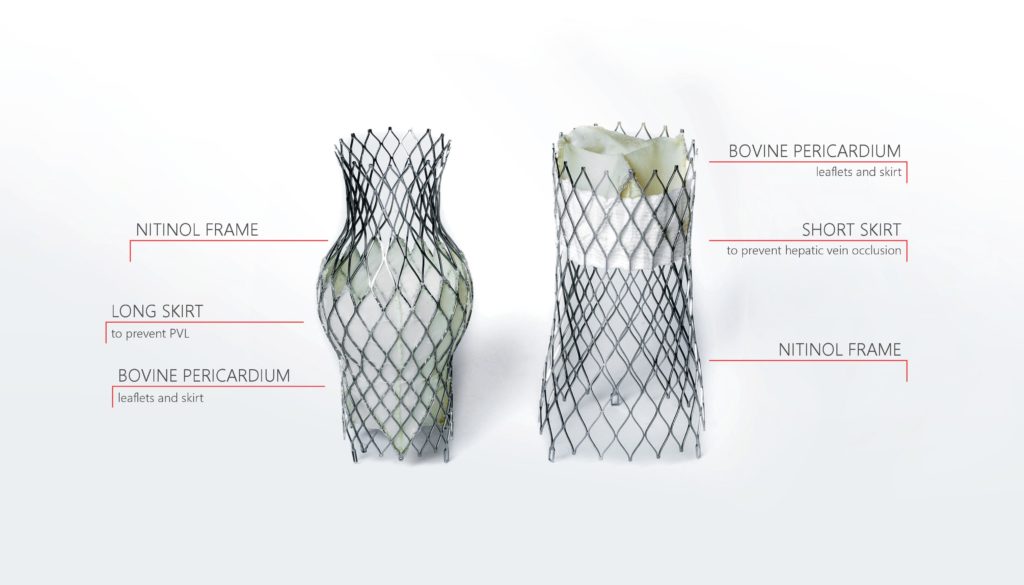

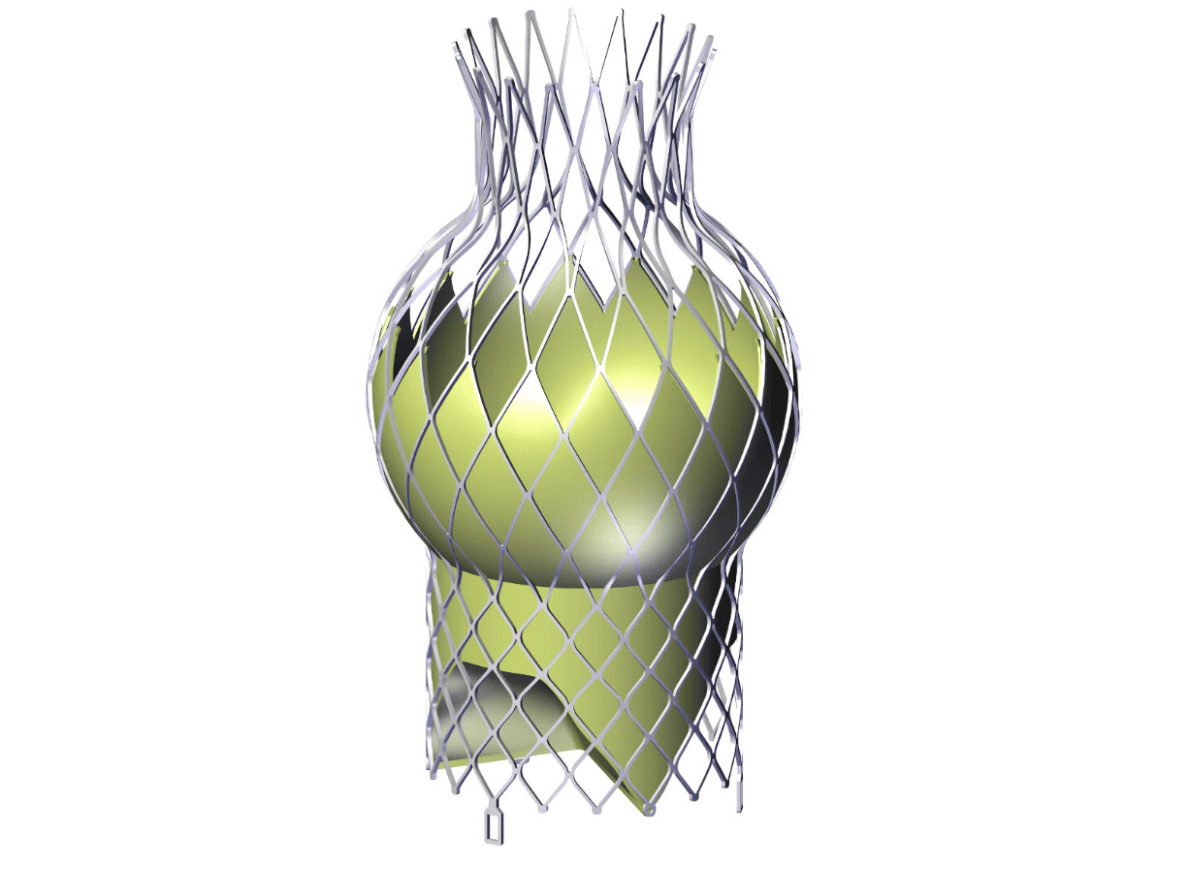

SPECIFICATIONS FOR SUPERIOR VENA CAVA VALVE

  • 25 and 29 mm valves.
  • 35 and 40 mm maximum stent diameter.
  • 65mm length.
  • Long skirt to prevent PVL.
  • Bovine pericardium leaflets and skirt.
  • High strenght Nitinol frame.
  • PTFE suture line.

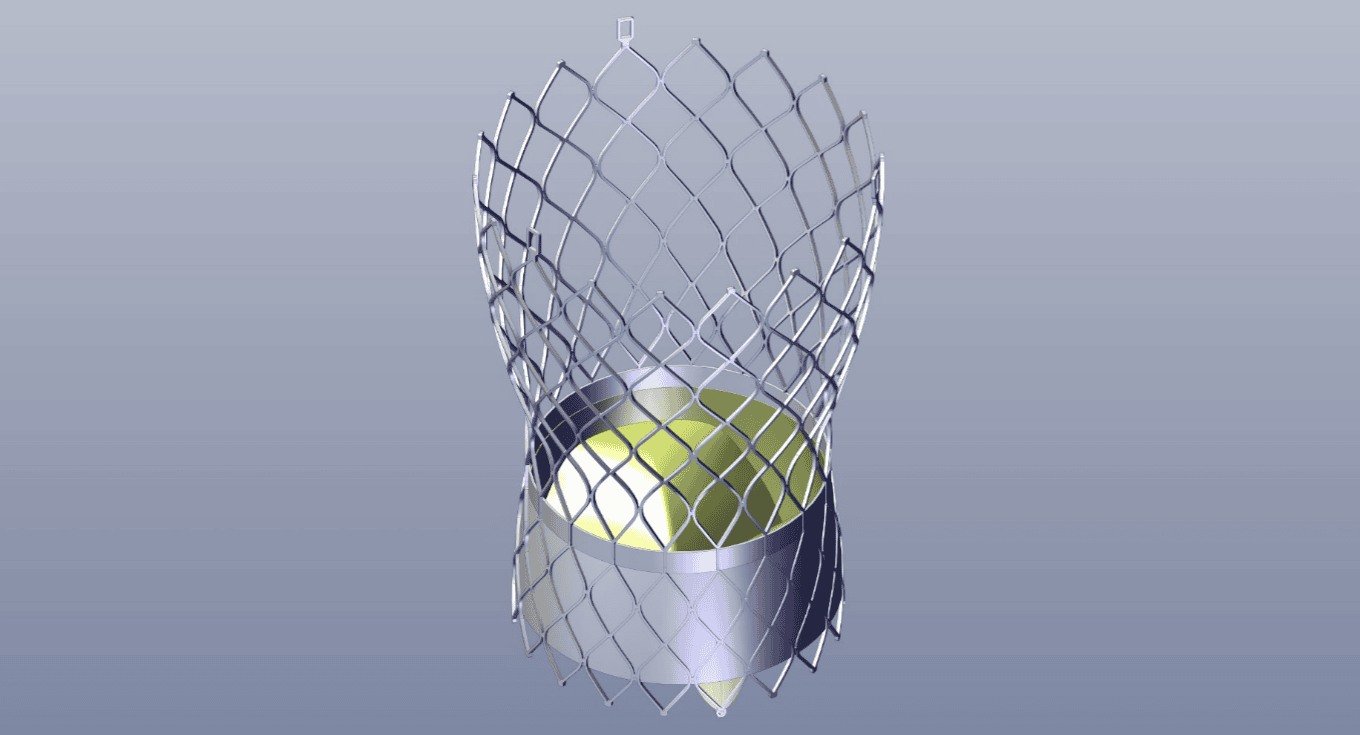

SPECIFICATIONS FOR INFERIOR VENA CAVA VALVE

  • 31 and 35 mm valves.
  • 42 and 47 mm maximum stent diameter.
  • 70 mm length.
  • Short skirt to prevent hepatic vein occlusion.
  • Bovine pericardium leaflets and skirt.
  • High strength nitinol frame.
  • PTFE suture line.

TRICVALVE® PUBLICATIONS

There are several publications concerning the TricValve Transcatheter Bicaval Valves System, for example the recent publication by by Professor Lauten et al: INTERVENTIONAL TREATMENT OF SEVERE TRICUSPID REGURGITATION.

Please click on this button to get to the overview of the publications:

ADVERTISING MATERIAL

Please write an e-mail to info@productsandfeatures.com if you need printed copies or print data.

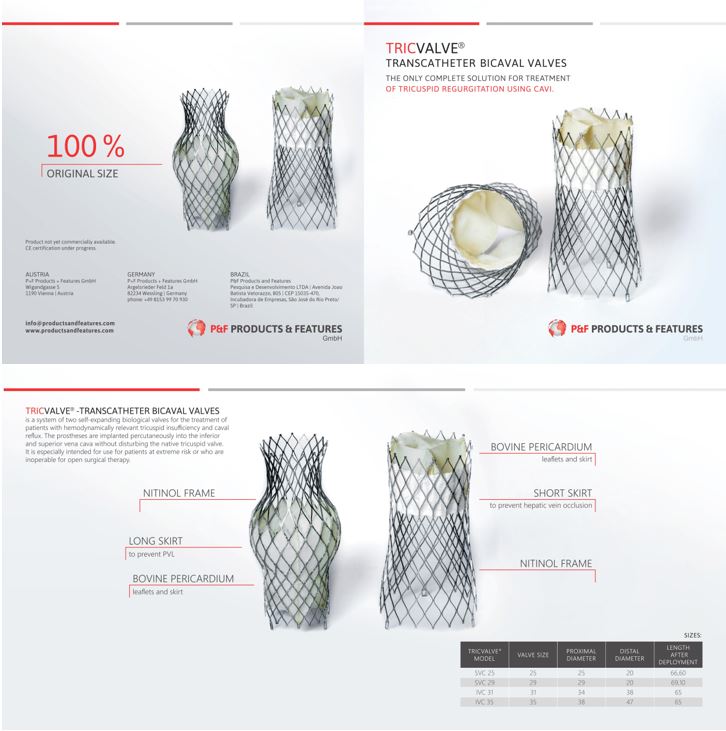

TricValve® Flyer 21x21 cm, 4 pages

TricValve® Standee, 2 versions, 91,44x198,12 cm

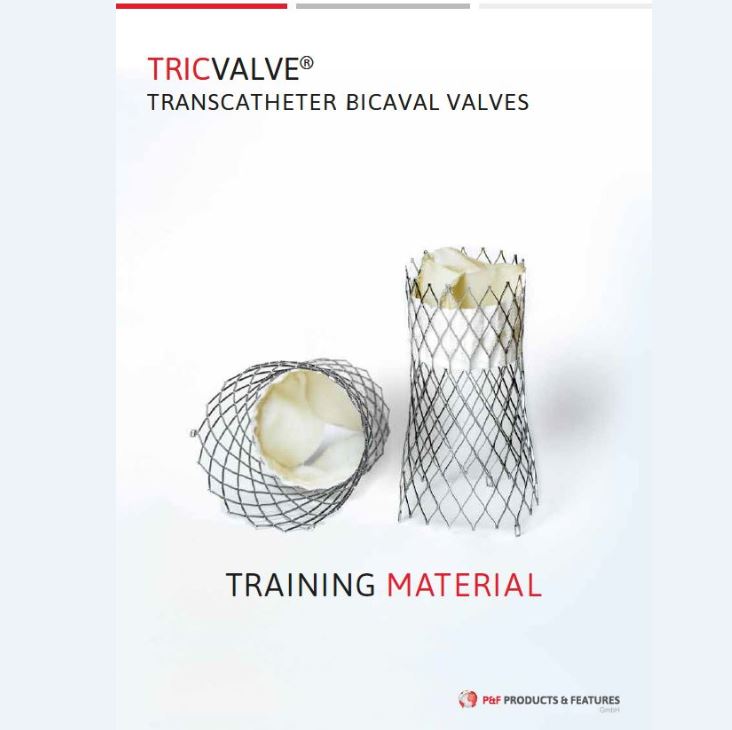

TricValve® Training Material
